DBDO

DUMP TRAILERS

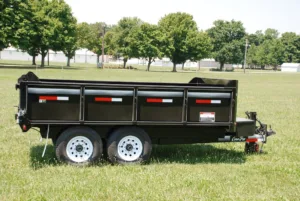

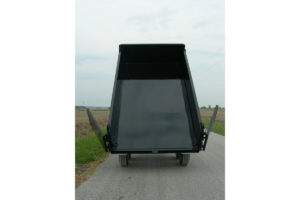

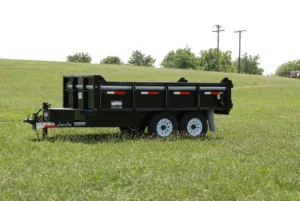

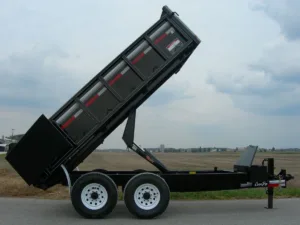

Introducing the DBDO Dump Trailer – your ultimate solution for efficient hauling and unloading. Engineered with durability and functionality in mind, our trailers boast a robust frame, reliable Dexter Torflex axles, and a powerful scissor hoist for effortless loading and unloading. With a 10-gauge steel floor and versatile rear doors featuring a spreader gate and barn doors, the DBDO Dump Trailer ensures you can handle any job with ease.

Available colors

Available sizes

81″x10′
81″x12′
81″x14′
81″x16′

Model	GAWR	GVWR	Curb Wt.*	Payload**	Length	Box Vol. Yd.
DB-12 DO	7,000	14,000	3,780 lbs	9,420 lbs	12′ deckover	6
DB-14 DO	7,000	14,000	4,200 lbs	9,000 lbs	14′ deckover	7
DB-16 DO	7,000	14,000	4,650 lbs	8,550 lbs	16′ deckover	8

Always Included

2″ x 8″ x 3/16″ frame
2″ x 3″ x 3/16″ cross members
6″ channel tongue

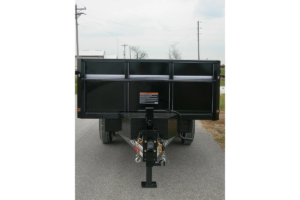

Demco, 2 5/16″ coupler
Jost, 12K side crank jack
Dexter Torflex (7K) axles
10 gauge steel flooring
ST235/80R16E 10-ply tires
8 bolt on 6.5″ hubs
LED lighting
Scissor (CS615T) hoist
Electric/Hydraulic power, power up/power down

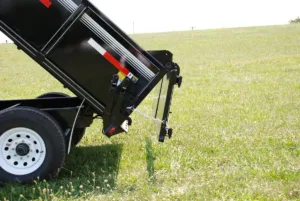

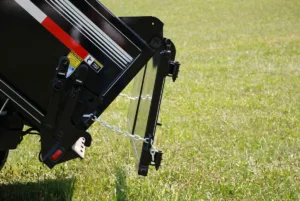

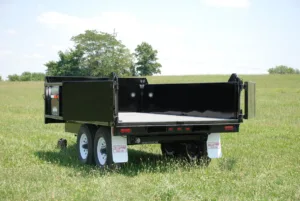

Spreader gate and barn doors

MAKE-IT-YOUR-OWN

Front telescopic hoist (144″ stroke)
8K axles (std w/17.5 H-rated tire/wheels)
Gooseneck (10″ I-beam) with adjustable coupler
Pintle ring (in lieu of 2 5/16″ coupler)
Spare tire / wheel (ST235/80R16E)
Spare tire / wheel (ST215/75R17.5H)
Extra D-rings *Price per ring
Slide out ladder ramps (84″)
Upgraded floor, 3/16″ (based on box length) *Price per foot
Rub rail with stake pockets (based on box length) *Price per foot
Heavy hoist (CS620T)

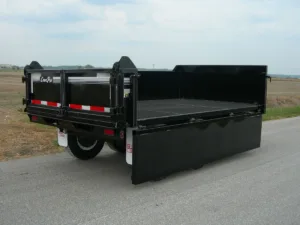

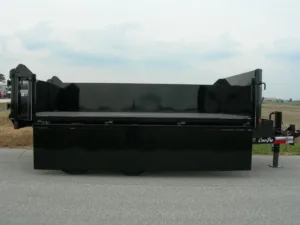

Drop down side (curb side only)
Roll Tarp Kit
Single hydraulic jack
Blackout package

Contractors Package

Slideout ladder ramps
Rub-rail with stake pockets
3/16″ floor

Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.

*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
