DBS

DUMP TRAILERS

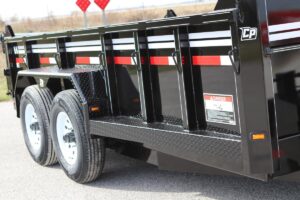

Got a business that requires easy-haul, easy-unload, and the need to handle the toughest conditions? Step up to the toughest dump trailer in the industry. With strength built into every corner, you’ve got 12-gauge sides on a 10-gauge floor, with 2” x 2” tubing uprights and 11-gauge diamond plate fenders, and running boards – all lifted with a ChampionTM scissor hoist. Haul what you’ve got without a worry.

Available colors

Model GAWR GVWR Curb Wt.* Payload** Length Box Vol. Yd.
DB-10 S 7,000 14,000 3,600 lbs 9,600 lbs 10′ low profile 5
DB-12 S 7,000 14,000 3,740 lbs 9,460 lbs 12′ low profile 6
DB-14 S 7,000 14,000 4,160 lbs 9,040 lbs 14′ low profile 7
DB-16 S 7,000 14,000 4,870 lbs 8,330 lbs 16′ low profile 8

Always Included

  • Low profile
  • 12-gauge sides
  • 2” x 2” tubing uprights
  • 10-gauge floor
  • 81” wide

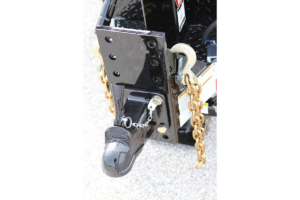

  • 2 5/16” coupler
  • 7K Dexter Torflex axles
  • All-axle electric brakes
  • 6 welded D-rings

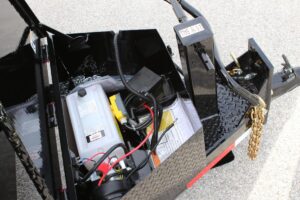

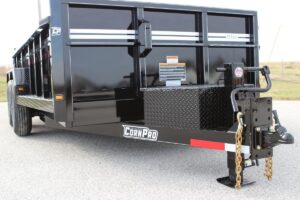

  • Lockable front box

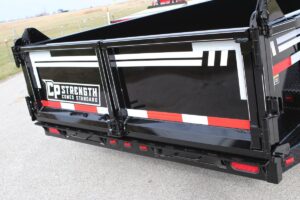

  • Tailgate chains

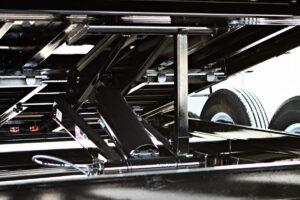

  • Scissor hoist
  • Rubber-mounted LED lighting
  • Bead-blasted pre-paint
  • PPG epoxy primer and urethane paint

MAKE-IT-YOUR-OWN

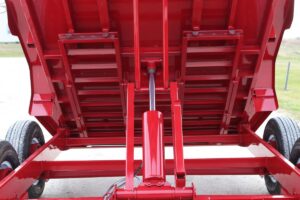

  • Front telescopic hoist (144″ stroke)
  • 8K axles (std w/17.5 H-rated tire/wheels)

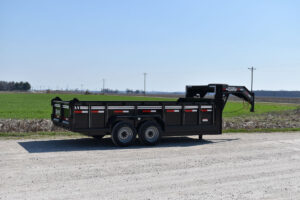

  • Gooseneck (10″ I-beam) with adjustable coupler
  • Pintle ring (in lieu of 2 5/16″ coupler)
  • Spare tire / wheel (ST235/80R16E)
  • Spare tire / wheel (ST215/75R17.5H)
  • Extra D-rings *Price per ring

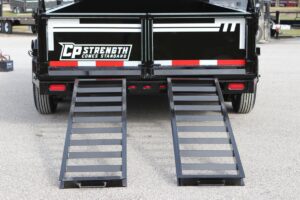

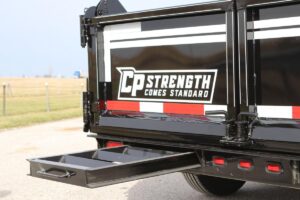

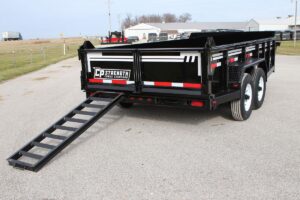

  • Slide out ladder ramps (84″)
  • Upgraded floor, 3/16″ (based on box length) *Price per foot
  • Rub rail with stake pockets (based on box length) *Price per foot
  • Heavy hoist (CS620T)
  • Roll Tarp Kit
  • Single hydraulic jack
  • Blackout package

Contractors Package

  • Slideout ladder ramps
  • Rub-rail with stake pockets
  • 3/16″ floor
Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.

*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
