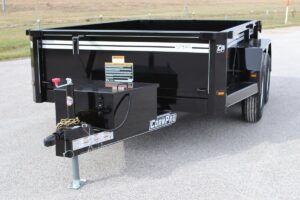

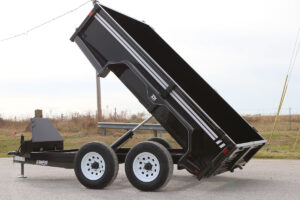

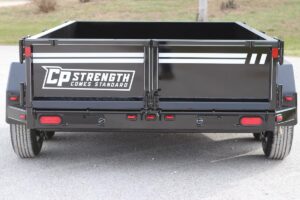

DBSP/DBDP

DUMP TRAILERS

With CornPro, strength comes standard. On every trailer, we use the strongest materials – even on our base models!
What you pay more for with the other guys, comes built to last in our standards. Take a look at the residential dumps if you want an example: 4” structural channel mainframe over 3” channel cross members with a 10-gauge floor and 20” tall sides make the DBSP and DBDP models a perfect fit for any residential use.

Available colors

Model GAWR GVWR Curb Wt.* Payload** Length Box Vol. Yd.
DB-10 SP 3,500 7,000 2,450 lbs 5,250 lbs 10′ low profile 3.7
DB-12 SP 5,000 9,990 3,040 lbs 7,944 lbs 12′ low profile 4.4
DB-10 DP 3,500 7,000 2,450 lbs 5,280 lbs 10′ deck over 3.7
DB-12 DP 5,000 9,990 2,700 lbs 8,289 lbs 12′ deck over 4.4

Always Included

  • 4” channel mainframe
  • 3” cross members
  • 10-gauge floor
  • 20” tall sides
  • 72” width
  • Dexter Torflex torsion axles
  • 2 5/16” heavy-duty coupler
  • All-axle electric brakes
  • Rubber-mounted LED lighting
  • 4 D-rings in bed
  • Bead-blasted pre-paint
  • PPG epoxy primer and urethane paint

MAKE-IT-YOUR-OWN

  • Pintle ring
  • 5K axles
  • Surge brakes
  • Spare tire/wheel
  • Blackout package
Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.

*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
