I-SERIES DUAL-TANDEM

FLATBED TRAILERS

The biggest, baddest trailer built to the maximum of every CornPro quality standard. From 16’ up to 30’ plus dovetail, we’ve got you covered. If you’re looking at dual tandem, you’re ready to haul something big and this big-boy can haul. Enough said.

Available colors

Specs… GAWR GVWR Curb Wt. Payload Length Width Axle Type Frame Size
16+5 10K GD 10,000 20,000 5,700 18,300 16’+5′ dove 102″ Spring 19#/ft
20+5 10K GD 10,000 20,000 6,200 17,800 20’+5′ dove 102″ Spring 19#/ft
25+5 10K GD 10,000 20,000 6,700 17,300 25’+5′ dove 102″ Spring 22#/ft
30+5 10K GD 10,000 20,000 7,250 16,750 30’+5′ dove 102″ Spring 22#/ft
16+5 10K HD 10,000 20,000 5,800 18,200 16’+5′ dove 102″ Spring 19#/ft
20+5 10K HD 10,000 20,000 6,200 17,800 20’+5′ dove 102″ Spring 19#/ft
25+5 10K HD 10,000 20,000 6,700 17,300 25’+5′ dove 102″ Spring 22#/ft
30+5 10K HD 10,000 20,000 8,160 15,840 30’+5′ dove 102″ Spring 22#/ft
16+5 12K 12,000 24,000 6,100 22,700 16’+5′ dove 102″ Spring 22#/ft
20+5 12K 12,000 24,000 6,600 22,200 20’+5′ dove 102″ Spring 22#/ft
25+5 12K 12,000 24,000 6,900 21,900 25’+5′ dove 102″ Spring 26#/ft
30+5 12K 12,000 24,000 9,260 19,540 30’+5′ dove 102″ Spring 26#/ft

Always Included

  • 10” I-beam frame
  • 16” on center cross-members
  • 2” x ⅜” rub rail
  • Spring assist ramps
  • Dexter spring axles

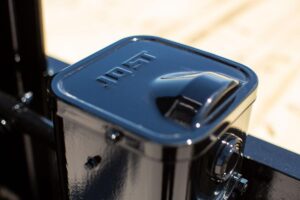

  • Bulldog 10K jack
  • All-axle electric brakes
  • Silicone-filled electrical connectors
  • Breakaway kit with 12 volt battery
  • Two front steps with handles
  • Front chain basket
  • Treated and kiln dried pine decking
  • Bead-blasted pre-paint
  • PPG epoxy primer and urethane paint
  • 4 dovetail options: Fixed (standard), Center-lift, Adjustable, or No dovetail

MAKE-IT-YOUR-OWN

  • 12” on center cross-members
  • 15K axles
  • Expanded metal in gooseneck
  • Dovetail jack
  • Dovetail lifting mechanism with driver side crank

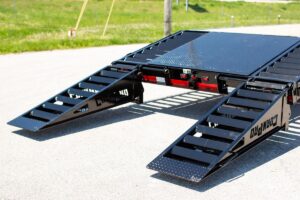

  • ProRamps (full width wedge ramps)
  • Center ramp
  • Stand-up ramp brackets
  • Additional 2-speed jack, with or without drop legs
  • Electric/hydraulic brakes
  • Toolbox lid
  • Torque tube
  • Winch plate
  • Underside winch rail
  • Tread plate floor
  • Blackout package

Dovetail Options

  • Fixed dovetail (standard)
  • Center lift dovetail
  • ProRamps
  • Adjustable dovetail
    • Dovetail lifting mechanism
    • Dovetail jack
    • Standup brackets
Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.

*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
