UT-H
UTILITY TRAILERS
You’ve got some big stuff to haul? CornPro’s got you covered. Our heaviest duty utility series, the UTH, is built with all the tough you need — even for your biggest loads. Strength comes standard isn’t just a bumper sticker to us, it’s how this bad boy is built.
Heavy duty 6” channel mainframe (8″ channel mainframe with 7K or 8K axles) with 8” channel bulkheads and tubing frame at the height of the Bulldog, 10K lb., 4”-square jack shows you we’ve put in the best to haul your heaviest.
Available colors
| Model | GAWR | GVWR | Curb Wt. | Payload | Length |
|---|---|---|---|---|---|
| UT-14 H | 6,000 | 12,000 | 2,400 lbs | 10,800 lbs | 14′ |
| UT-16 H | 6,000 | 12,000 | 2,450 lbs | 10,750 lbs | 16′ |
| UT-18 H | 6,000 | 12,000 | 2,780 lbs | 10,420 lbs | 18′ |
| UT-20 H | 6,000 | 12,000 | 2,840 lbs | 10,360 lbs | 20′ |
| UT-22 H | 7,000 | 14,000 | 3,050 lbs | 12,350 lbs | 22′ |
| UT-24 H | 7,000 | 14,000 | 3,550 lbs | 13,250 lbs | 24′ |
Always Included
- 6” channel mainframe
- 16″ on center cross-members
- Spring assist ramps

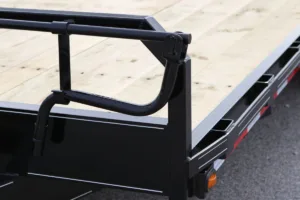

- Vertical ramp storage
- 81” width (between fenders)
- 2” x ⅜” rub rail
- Dexter Torflex torsion axles
- All-axle electric brakes

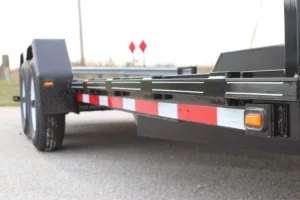

- Rubber-mounted LED lighting
- Silicone-filled electrical connectors

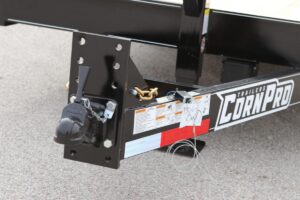

- Breakaway kit with 12-volt battery

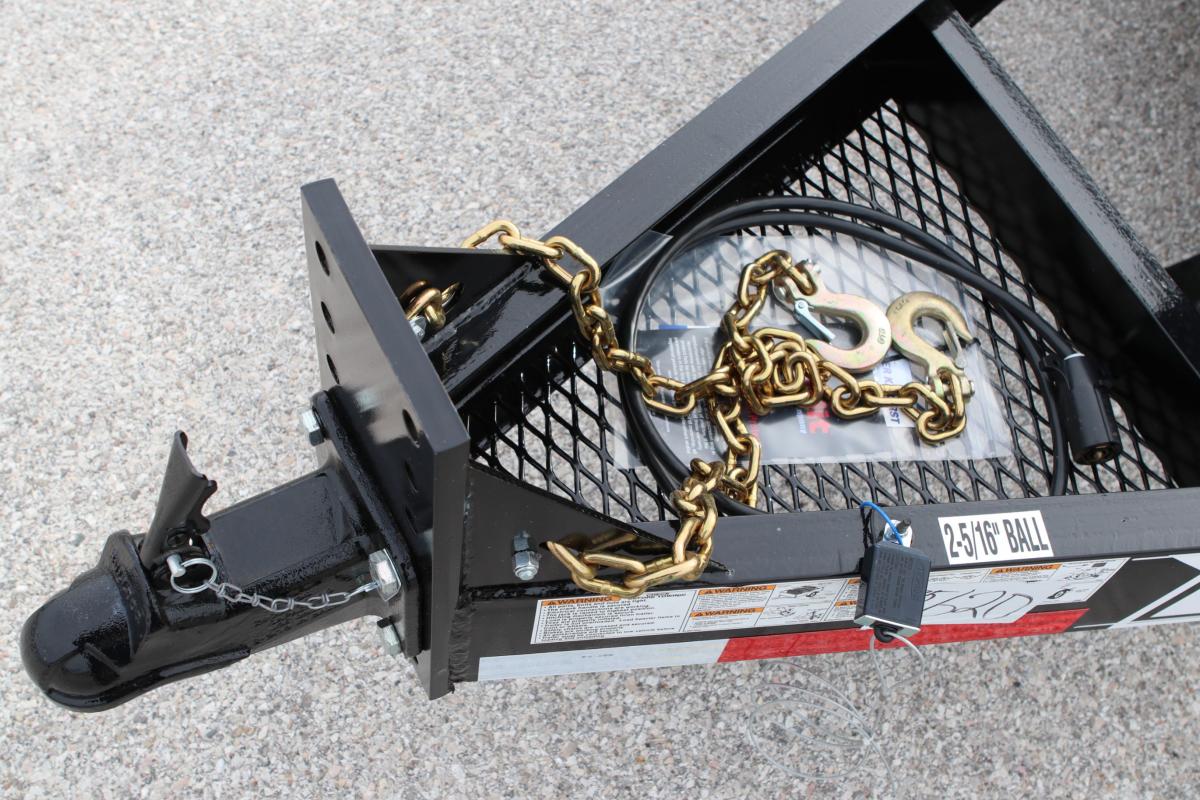

- Chain basket
- Spare tire bracket
- 2 D-rings, front of deck

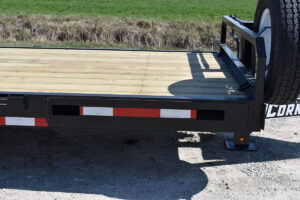

- Treated and kiln-dried pine decking
- Bead-blasted pre-paint
- PPG epoxy primer and urethane paint
MAKE-IT-YOUR-OWN
- Gooseneck
- 24” dovetail
- Wood filled ramps
- 5′ long ramp (in lieu of 4′)
- Full/split gates
- 7K torsion axles
- 8K torsion axles standard with 17.5 H-rated tires/wheels
- Pintle ring in lieu of 2 5/16” coupler
- Surge brakes
- Fork storage
- Steel floor
- Oak floor
- Extra drop jack
- Single hydraulic jack

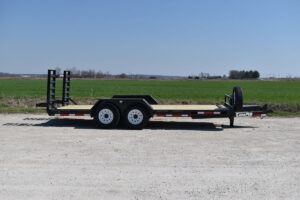

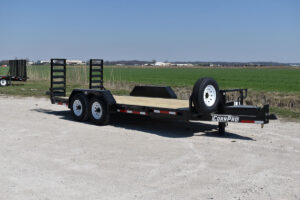

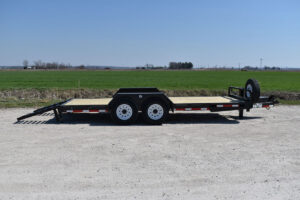

- Tongue mounted toolbox
- Blackout package
Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.
*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
