UT-L
UTILITY TRAILERS

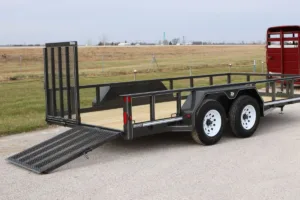

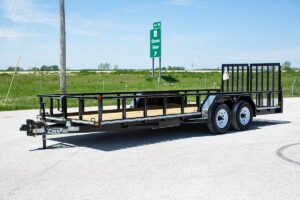

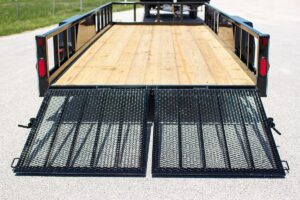

Need the type of trailer the pros use? Step up to the CornPro UTL. Made with the same 24” on center cross-members rolling on the same high-quality torsion axles and radial tires, the UTL adds 81″ of fender to fender space with four optional lengths. Solid, kiln-dried flooring and a tread plate ramps make this trailer ready to haul your largest lawn equipment.
Available colors
| Model | GAWR | GVWR | Curb Wt. | Payload | Length |
|---|---|---|---|---|---|
| UT-14 L | 3,500 | 7,000 | 1,800 lbs | 5,900 lbs | 14′ |
| UT-16 L | 3,500 | 7,000 | 1,900 lbs | 5,800 lbs | 16′ |
| UT-18 L | 3,500 | 7,000 | 2,040 lbs | 5,660 lbs | 18′ |
| UT-20 L | 5,000 | 9,950 | 2,280 lbs | 8,655 lbs | 20′ |
Always Included
- 3”x 5”x 1/4” main frame
- 24” on center cross-members

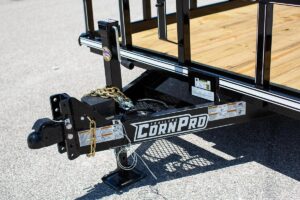

- 3” channel A-frame tongue
- Ramp storage behind fenders
- Dexter Torflex torsion axles
- Chain basket
- Bead-blasted pre-paint
- PPG epoxy primer and urethane paint
MAKE-IT-YOUR-OWN
- 5K axles (must add tube-rail or solid-side package)
- Tube-rail package (standard with full/split gates)
- Solid-side package (standard with full/split gates)
- 48″ or 72″ side load gate
- Full/split gates
- Ladder ramps
- Spare tire/wheel
- Blackout package
Curb weight is based on a standard model unit with no options.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.
**Payload is calculated on 10% transfer weight on bumper hitch when weight is distributed evenly.
*some pictures still show the last generation of logos and graphics, only the “new” logos/graphics are available
